Extraordinary Ability
Ultra Lightweight
Pancake VR all-in-one machine is the best choice for VR
applications in vertical fields in light, thin, comfortable and
cost-effective industries.provided professionally IS ODM / OEM

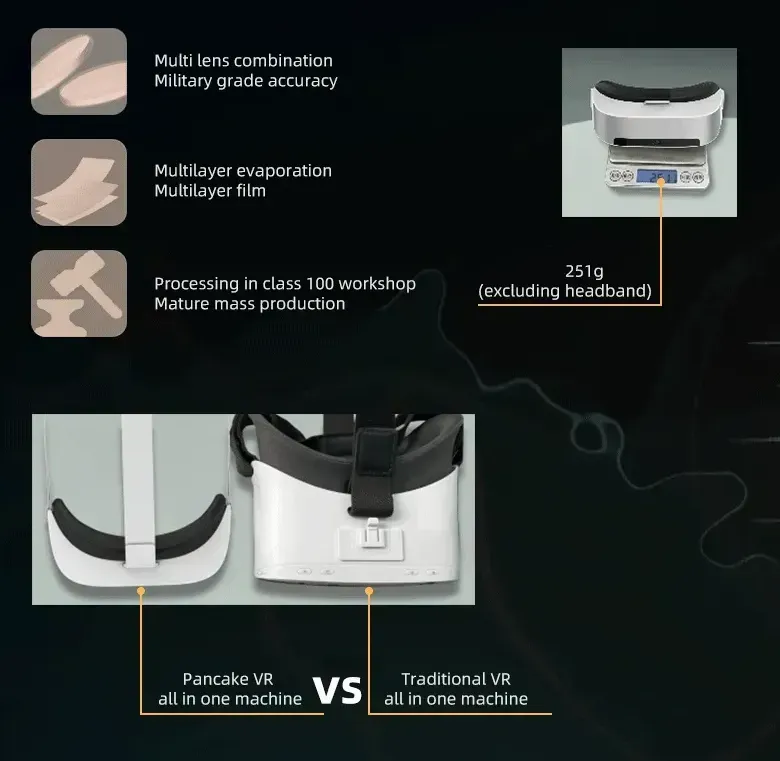

Pancake Optics creating the lightest
VR all-in-one machine

Pancake ultra short focus is used to compress the optical thickness of VR glasses to 1 / 4 of the thickness of traditional VR display system, break the traditional optical constraints, change the image of stupidity and stupidity of traditional all-in-one machine, and realize the miniaturization and lightweight of VR all-in-one machine; The polarization state of the optical path is modulated through an optical structure of up to 11 layers to realize the folding of the optical path system, and ultra-high image quality imaging is carried out under the folded optical path multiplexed by the lensAfter years of research and development and precipitation, we have broken through the bottleneck of technology and process, and made pancake products truly mature and mass produced
Pancake Optics creating the lightest
VR all-in-one machine
XR1 chip is the most mature VR chip at present. It not only ensures performance, but also does not waste performance. It meets the VR applications in most industries. XR1 supports 3DOF interaction and 6DOF expansion and upgrading. The LCD screen with the highest pixel density in the global mass production is professionally customized for VR, with excellent display performance, maturity and stability. BOE&JDI, the world's top panel supplier, can supply stably, and the best matching size of pancake. The product can be seamlessly upgraded to 1920 * 1920 or 2280 * 2280 resolution,Higher performance screens are expected to be mass produced in the second half of 2022.

3DOF Standard Configuration
Adapt to more interaction and expansion capabilities

Multiple adjustment modes
Adapt to most people's eyes

Most myopia can be easily used without wearing glasses; Support up to - 8D (image distance 0.125m-3m) myopia, left and right eyes can be adjusted respectively;The eye mask is widened to support direct use with glasses; Pupillary distance adaptation, no pupillary distance adjustment, a wide range of adaptation, to meet the needs of the vast majority of people.

The special VR speaker and professional sound cavity design are adopted to support 3D stereo sound effect output, so as to realize a more immersive audio and video VR experience.

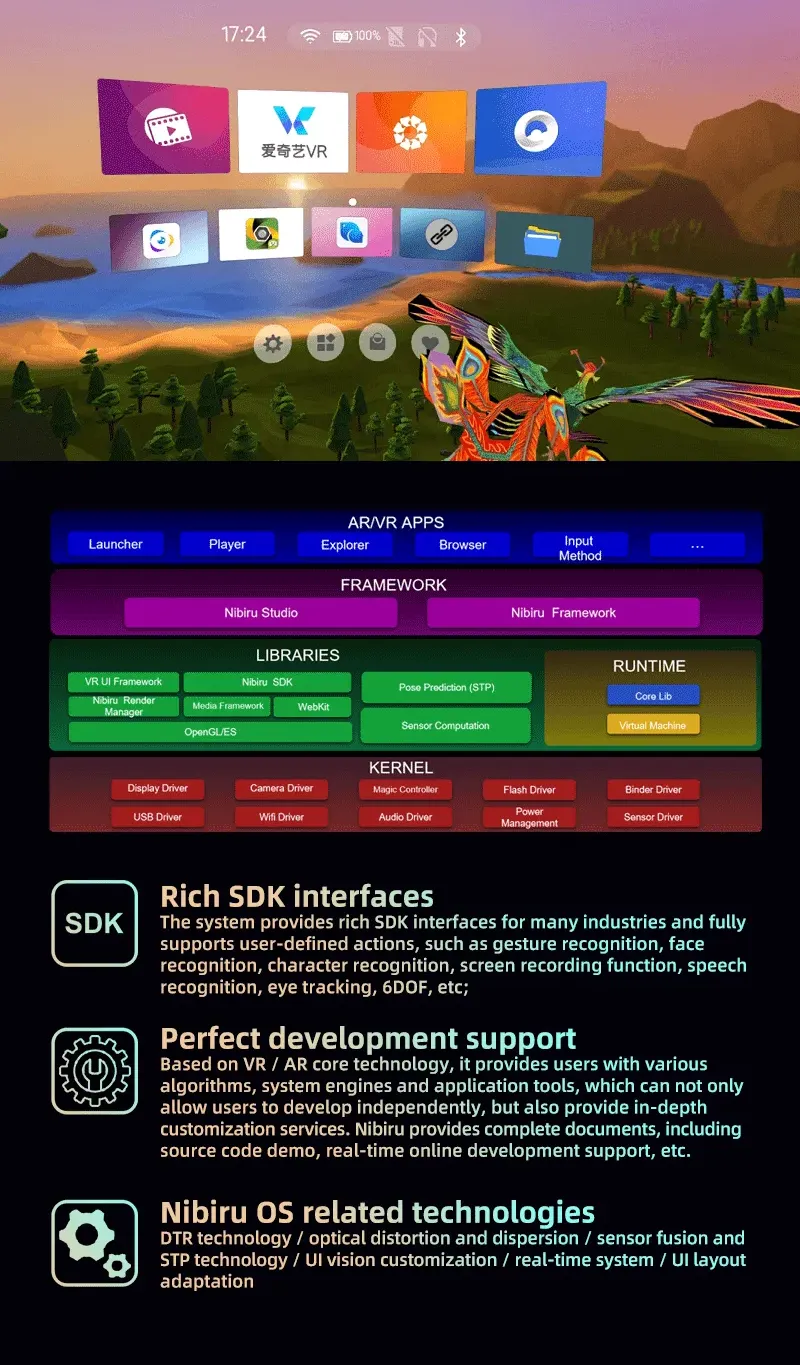

VR OS
Built in Nibiru VR OS
Provide the overall product solution of system
software and hardware integration


Category: VR all-in-one machine
Weight: 251g (excluding headwear)
Thickness: 30mm
Color: bright white (support color customization)
CPU: Qualcomm XR1
Cache / memory: 3G / 32g, supporting optional upgrade(4G/64,6G/128,8G/256)
Lens: double glass lens + multilayer diaphragm
FOV: 96 degrees

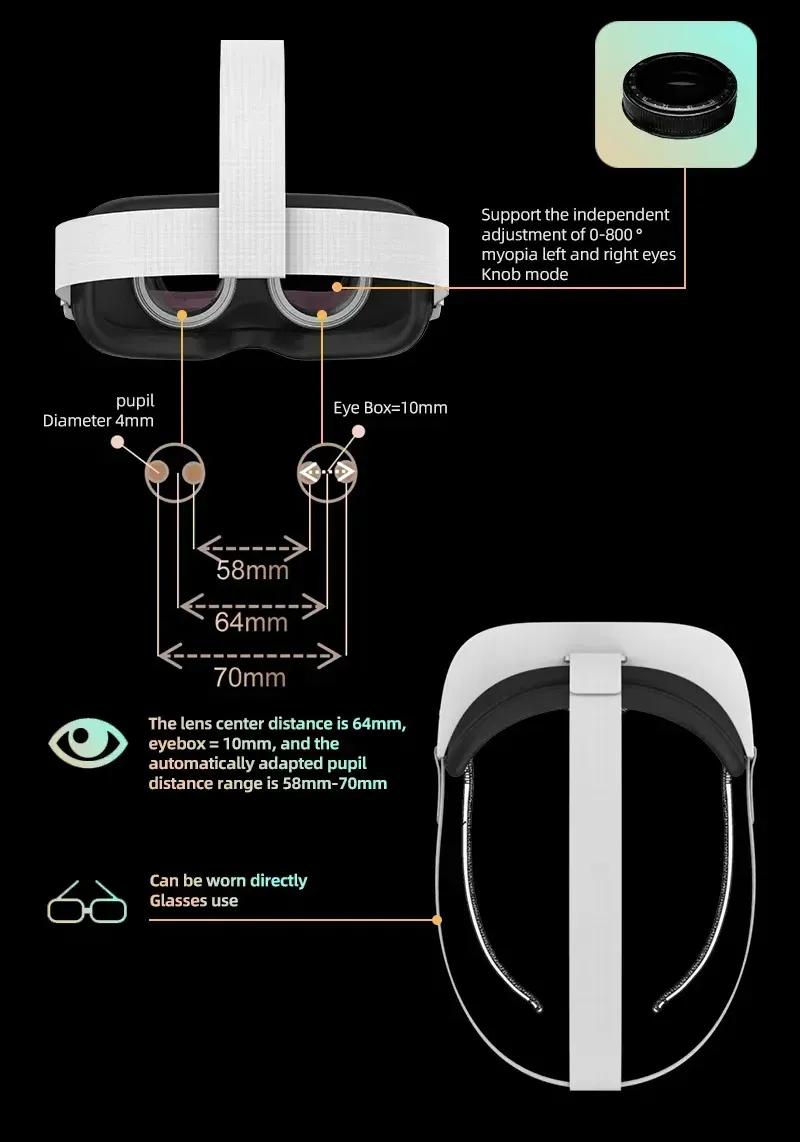

Eyebox: 10mm, adaptive 58-70mm pupil distance
Focusing: 0.125m-3m, supporting 0-800 degree myopia adjustment

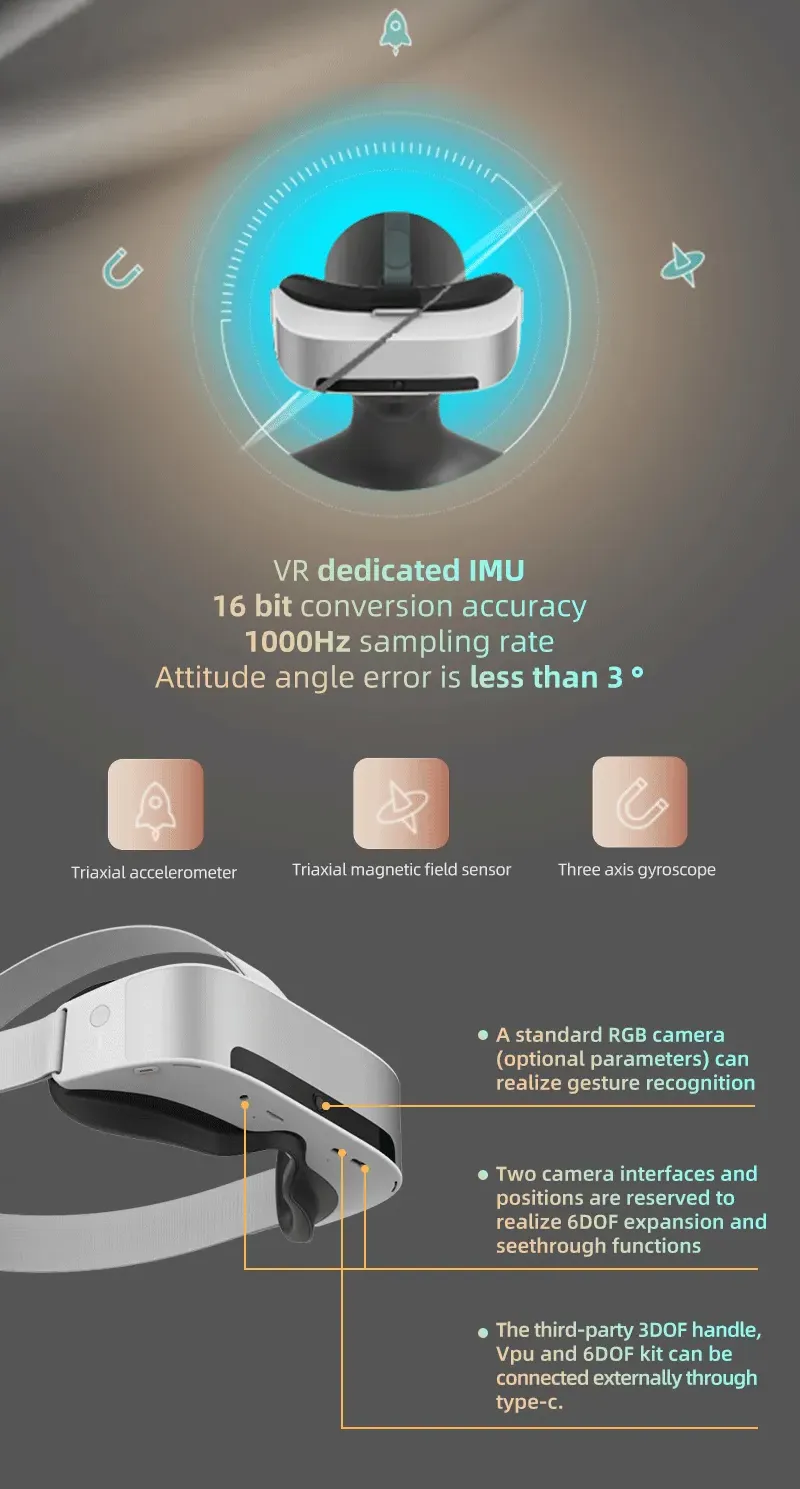

IMU: 9-axis sensor

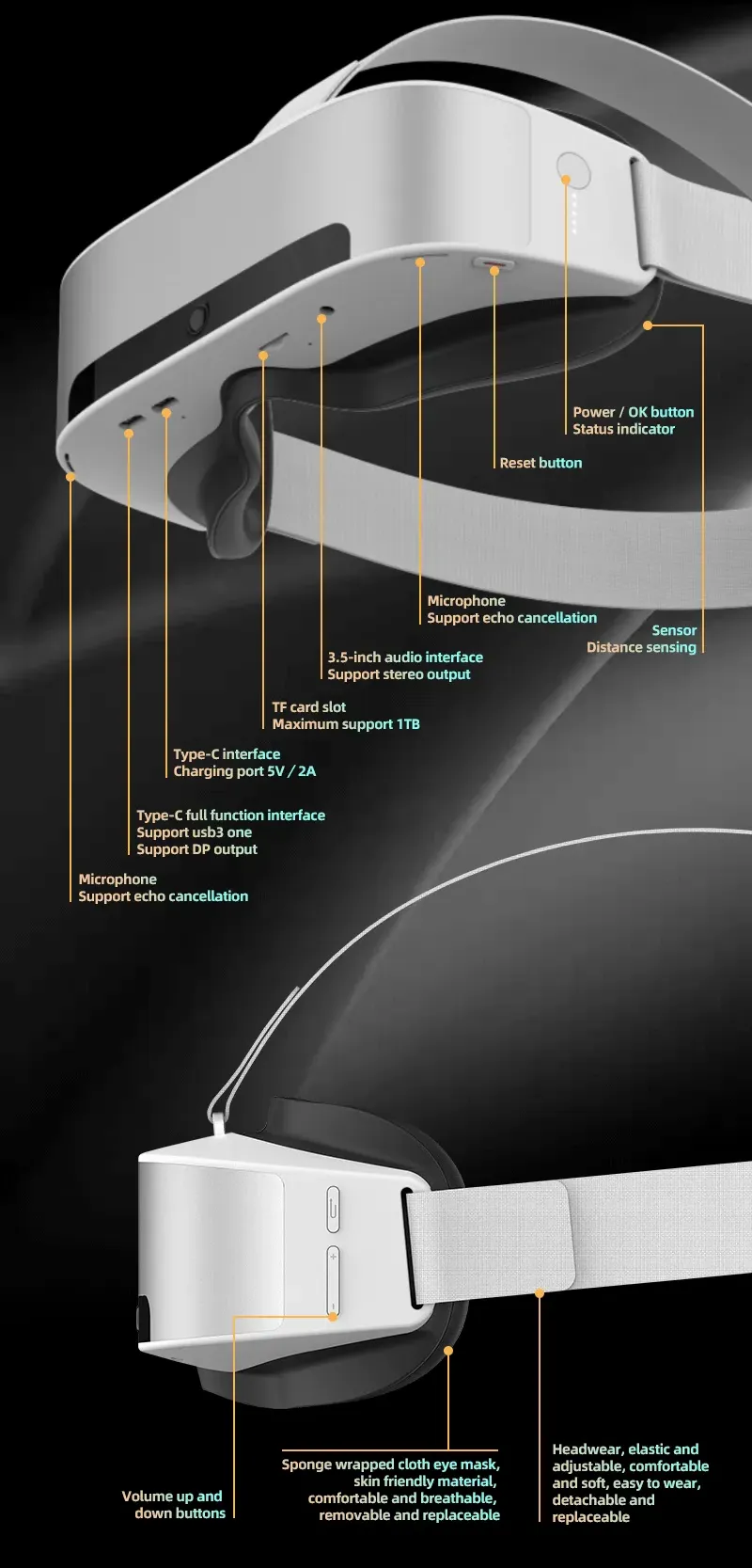

Audio: 3.5mm audio output interface / dual speaker stereo output / dual microphone output - echo cancellation
Camera: one camera is equipped as standard and supports the expansion of dual cameras
Interface: Type-C 3.1, full function type-C interface, supporting DP output、Type-C charging port: 5V / 2A 、TF card slot
Battery: capacity 4000mAh, supporting 2 hours of use
Keys: on / off / OK key, home key, volume plus or minus key
Indicator light: 1 + 4, 1 status light, 4 power lights
System: ruiyue Nibiru VR OS
Language: Simplified Chinese, traditional Chinese, English (customizable language)
Certification: certification according to customer needs
