VR Headset VR All in one - Trueasy Cube_RK3588

3DoF VR all-in-one,

High quality immersive experience

Use Rockchips RK3588 chip,8nm advanced process, 8-core

64-bit architecture,high performance,low power consumption.

CUBE is a lightweight

and high-performance product

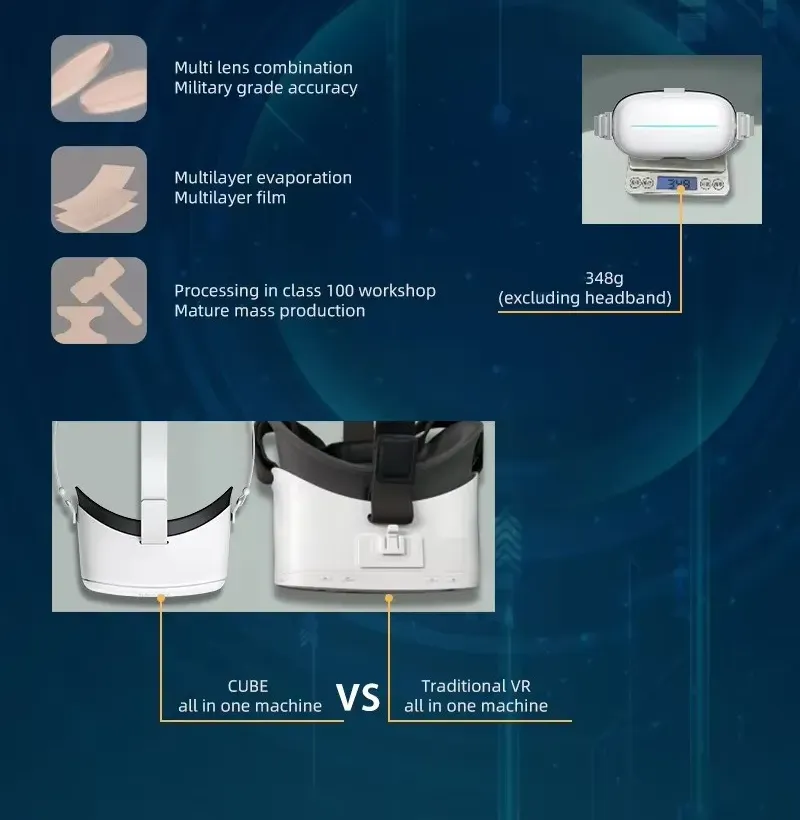

CUBE Optics creating the lightest

VR all-in-one machine

The RK3588 chip adopts an advanced 8nm process,8-core 64-bit architecture, ARM Mali-G610 MC4 GPU,dedicated 2D graphics acceleration module, supports 6TOPs NPU,8K video encoding and decoding, 8K display output,empowers various Al scenarios,has strong image processing capabilities, 48MP ISP, supports multiple camera inputs, stronger performance,lower power consumption,and brings an extremely extraordinary experience to our product

While ensuring the performance and effect,the VR all-in-one machine with the best cost performance is provided.The industrial application is the first

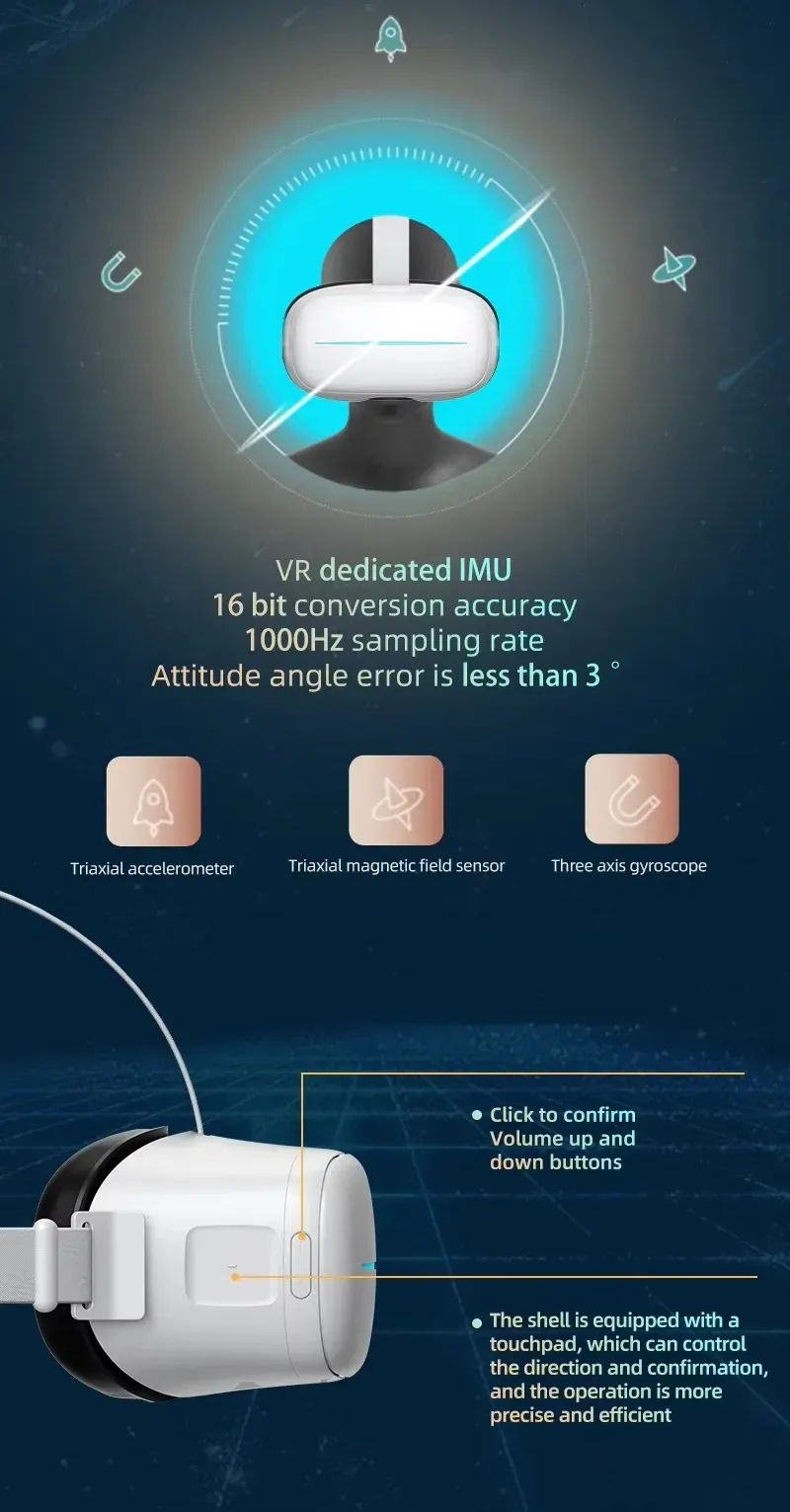

Very efficient touchpad

The shell is equippedwith a touchpad,whichcan control the direction and confirmation, and the operation is more preciseand efficient.

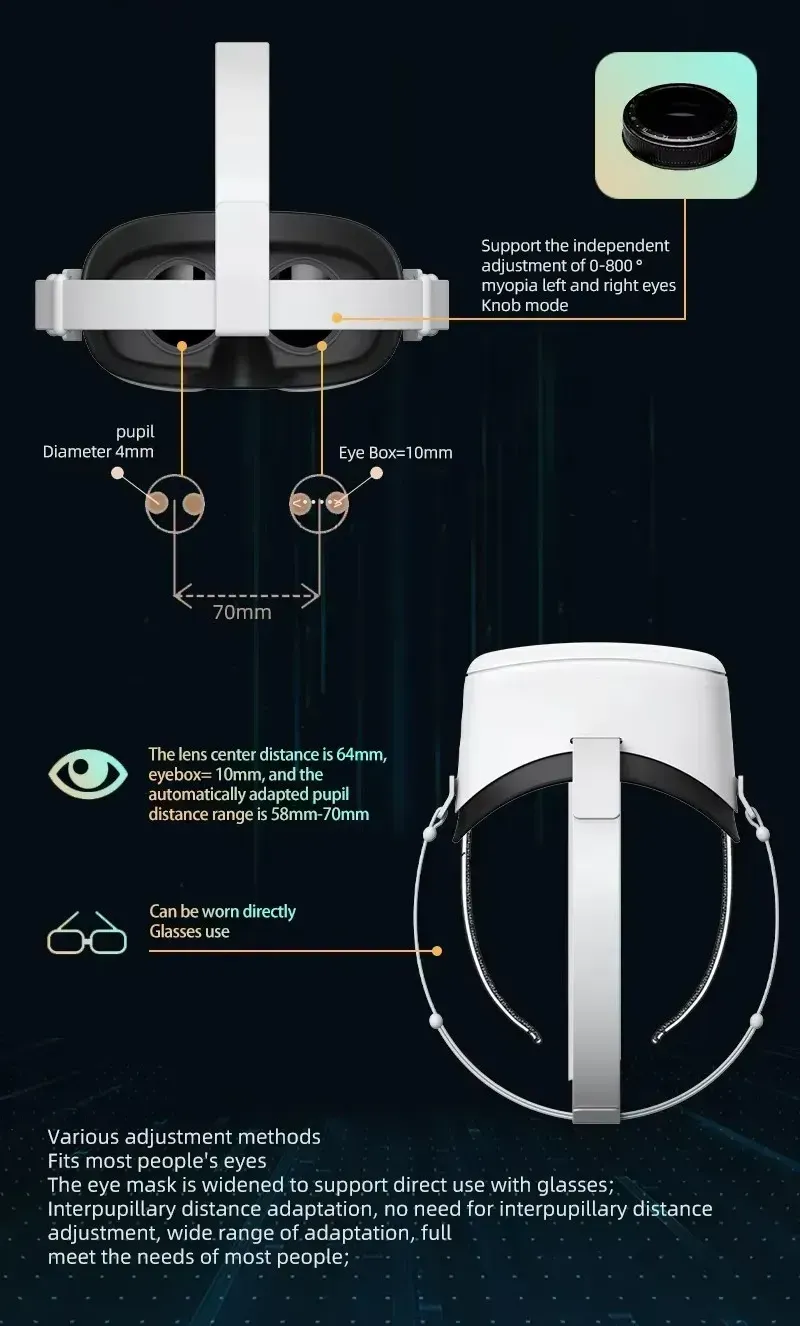

Multiple adjustment modes

Adapt to most people's eyes

The special VR speaker and professional soundcavity design are adopted to support 3D stereo sound effect output, so as to realize a more immersive audio and video VR experience.

Exquisite Craftsmanship

260 precision components

10 core processes  300 hour repeated test

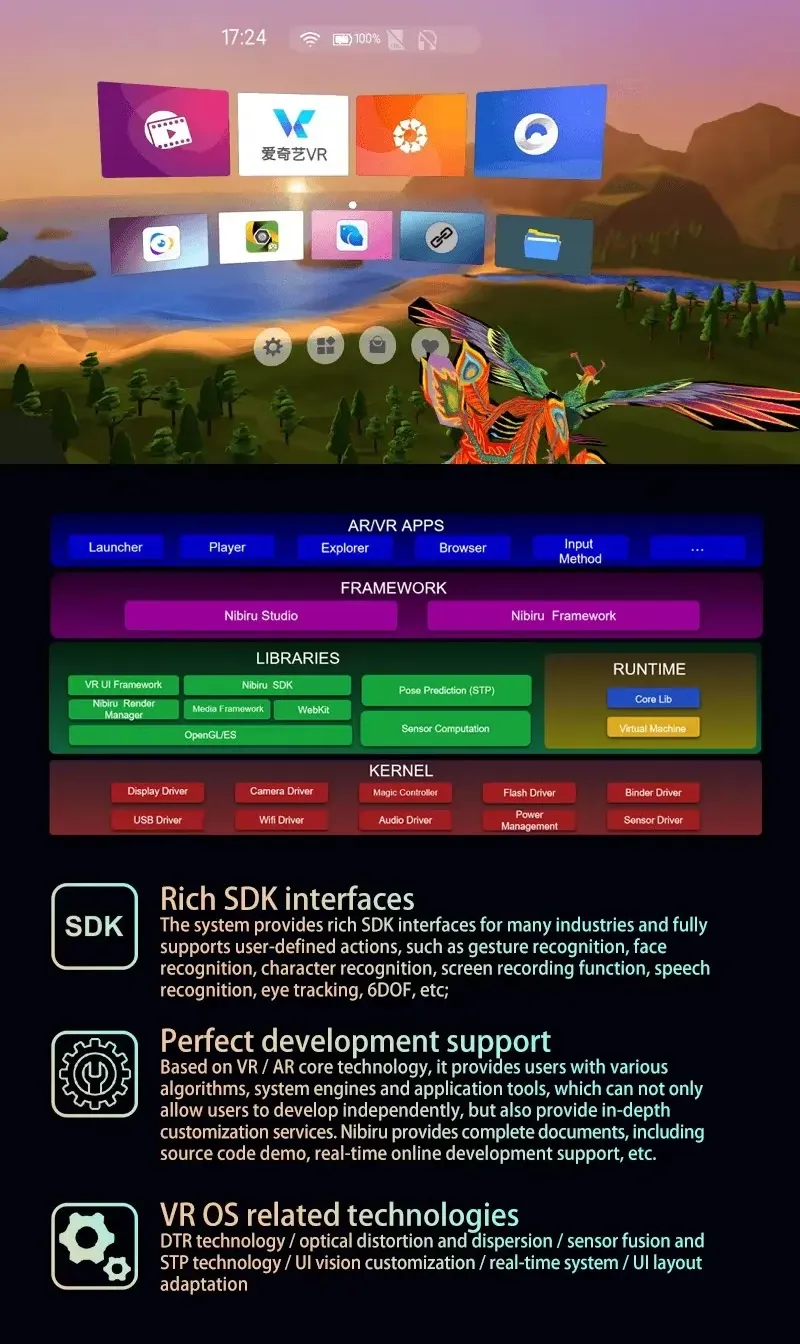

VR OS

Built in Nibiru VR OS Provide the overall product solution of system software and hardware integration

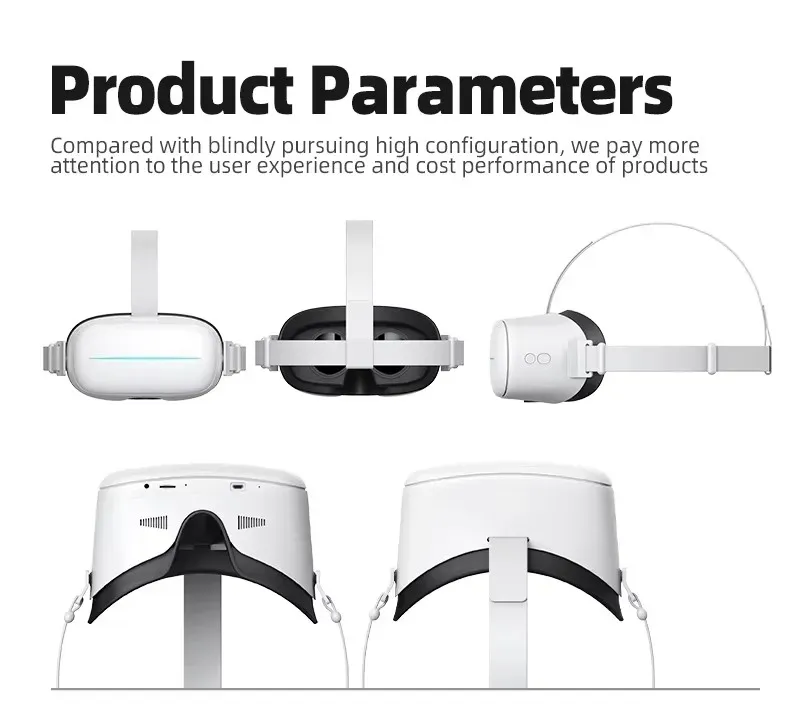

Category: VR all-in-one machine

Weight: 348g (excluding headwear)

Thickness: 30mm

Color: bright white (support color customization)

CPU: Rockchips RK3588

Cache / memory: 2.3GB / 32GB , support customization（4G/64G,6G/128,8G/256）

Lens: Fresnel lens

FOV: 105 degrees

Proximity sensor: bring the machine to work, remove it for standby

Wifi: 2.4G/5G (802.11b/g/n/ac)MIMO

BT: BT 5.0

IMU: 9-axis sensor (three-axis accelerometer, three-axis gyroscope, three-axis magnetometer)  3Dof interaction is supported.

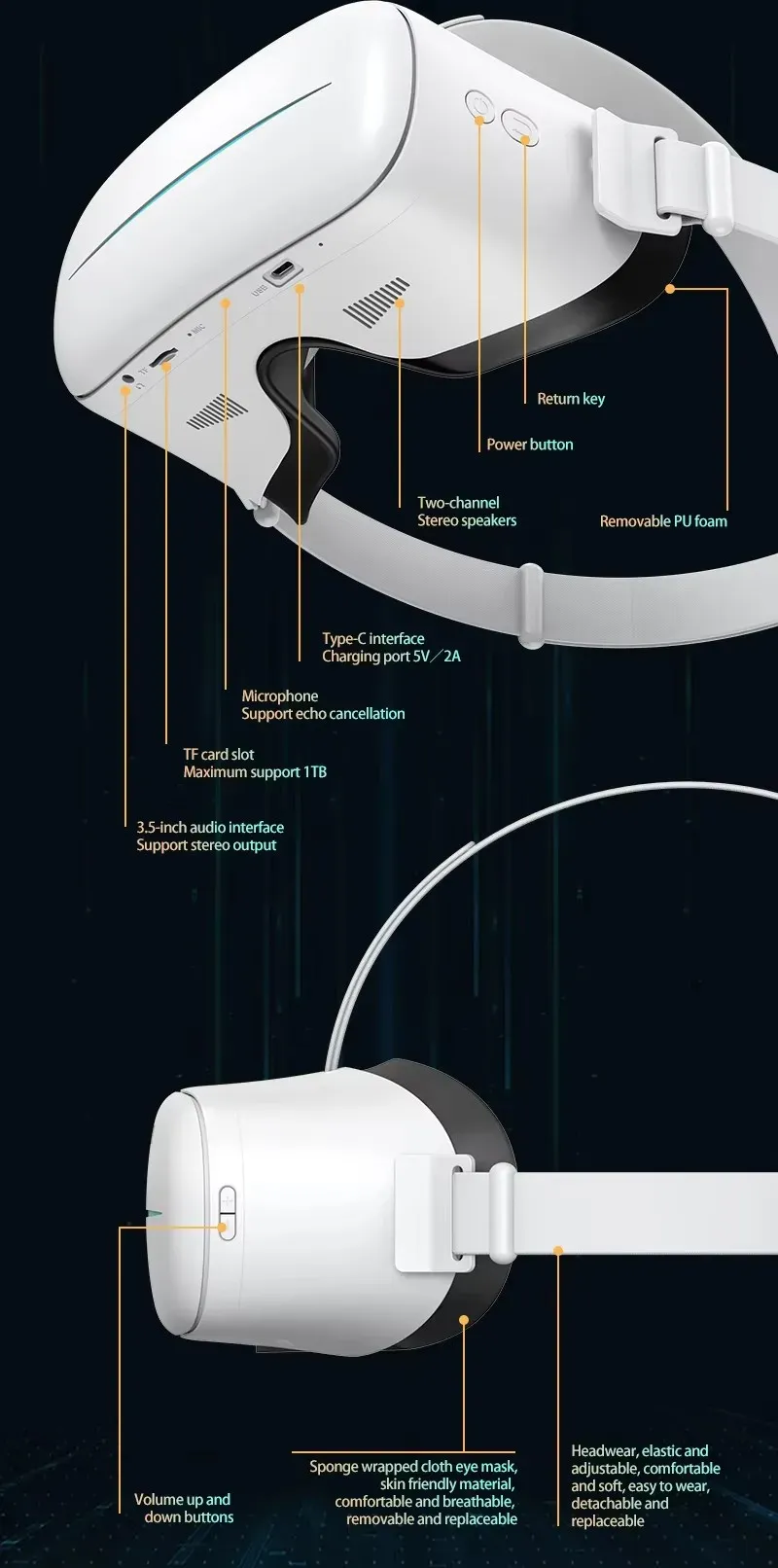

Audio: 3.5mm audio output interface Dual speaker stereo output Dual Mic Output - Echo Cancellation

Dimensions: 180*98*142mm

Upgrade: OTA

Interface: Standard Type-c 3.1,support DP1.4 output

Voltage: 5V/2A

TF card: maximum expandable 1T

Battery: Capacity 4000mAh, support more than 4 hours (customizable)

Buttons: Power on/off/OK button, Home button, Volume up and down buttons

System: VR OS/Android

Language: Chinese, English and other languages

Certification: Certification according to customer needs
